Pharmaceutical Tablet Capsule Counting Machine YL-4 Pharmacy Counting Machine

Name: Pharmaceutical Tablet Capsule Counting Machine YL4 Pharmacy Counting Machine
Brand: URBAN
Price: 1 USD

Buy cheap Pharmaceutical Tablet Capsule Counting Machine YL-4 Pharmacy Counting Machine product

Brand Name : URBAN

Model Number : YL-4

Certification : CE ISO9001 GMP

Place of Origin : ZHEJIANG-china

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100set/Year

Delivery Time : 15 work days

Packaging Details : Free Fumigation in Wooden Cases

Dimension : 98*79*93CM

Voltage : 110-220V 50HZ-60HZ

Weight : 75KG

Output : 2000-4000PCS/Min

Soft capsule size : 6-22mm

Contact Now

Electronic Pill Counters Eliminate Hand Counting Simple Operation Type Counting Machine

This machine is suitable for counting, bottling and bagging capsules, tablets, granules and other medicines and foods in pharmaceutical, hospital and food industries.

This machine has the advantages of small size, light weight, low noise, accurate counting, simple operation and simple maintenance.It is an ideal special equipment for counting, bottling and bagging capsules, tablets, granules and other medicines or foods.

Operating Steps:
1	Check the disc to make sure there are no tablets or other debris.
2	Pour the tablets into the disc, make sure not too full.
3	The feed opening set into a plastic bag.
4	Adjust the height of the lift plate.
5	Turn on the power; check whether display of detection sensitivity (sensitivity adjustment refer to Troubleshooting).
6	Set number, such as inventory is set in 1000 or more.
7	Return to zero.
8	Turn vibration switch, adjust vibration, note whether tablets on the disc are one by one ordered, and not overlapped.
9	When the tablet counting is finished, it will automatically count the other side.
10	Please note that whether sensitivity indicator flashes normally in operation, and do sampling often; if abnormal should immediately stop the machine.
11	When operating please make sure not so many tablets are poured into the disc, so that they are not overlapped and wrong counted.
12	Avoid placing the machine near the windows, outdoors, or in the sun.

Before using this product:

Check whether the glass disc and vibrator are stopped.

Check for any debris on the glass disc and groove of vibrating feeder.

Select the appropriate Orbit, see the accompanying drawings

Adjustment method of orbit:

1	The inner and outer orbit should be parallel to each other, a width slightly larger than the diameter of the capsules or tablets, its material outlet shall be placed at an intermediate position of electric eye base.
2	Outer orbit should be affixed to the front of the circumference to ensure a smooth sliding of the capsule.
3	Adjust Skew, its height should be slightly larger than the thickness of tablets.

With the size of the bottle and medicine, appropriate chose the material outlet.

Adjust the height of lifting plate and lock Y-Locator.

Turn on the power, set the number, slow start the glass disc and vibrator, check whether tablets slide smoothly and digital display is correct, if both are normal, set number to zero and start the operation

Parameter:

Model	YL-4
Dimension	98x79x93CM
Voltage	110-220V / 50HZ-60HZ
Weight	75kg
Power	350W
Output	2000-4000PCS/Min

others:

Model	YL-2	YL-4	YL-2A
Dimension	81x72x84cm	98x79x93cm	44x37x58cm
Voltage	110-220V 50HZ-60HZ	110-220V 50HZ-60HZ	110-220V 50HZ-60HZ
Weight	65kg	75kg	20kg
Power	350W	500W	300W
Output	1000-2000	2000-4500	500-1500

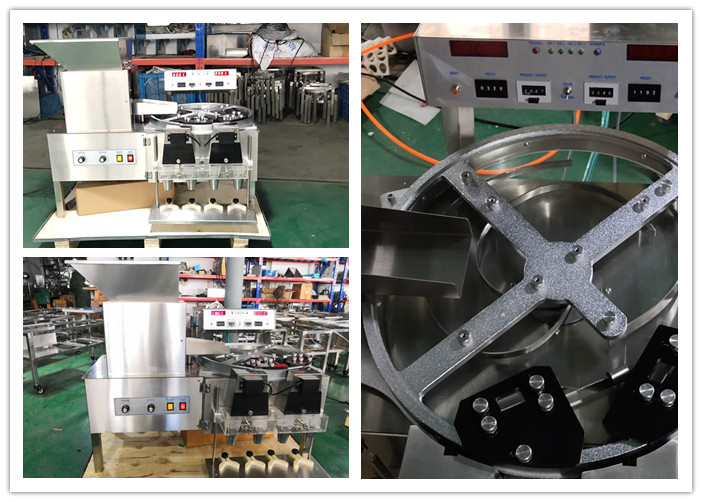

Detailed image:

Pharmaceutical Tablet Capsule Counting Machine YL-4 Pharmacy Counting Machine
